Parameter Function Description

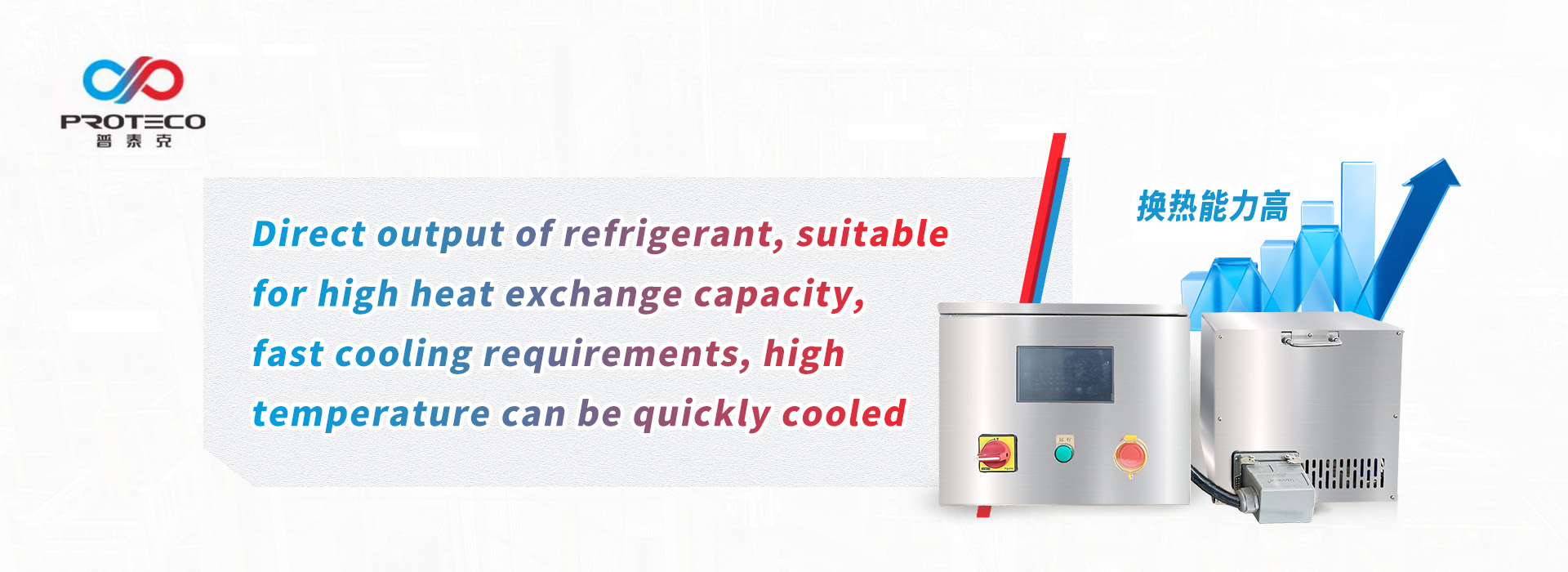

• PTZL series direct cooling low-temperature refrigeration machine

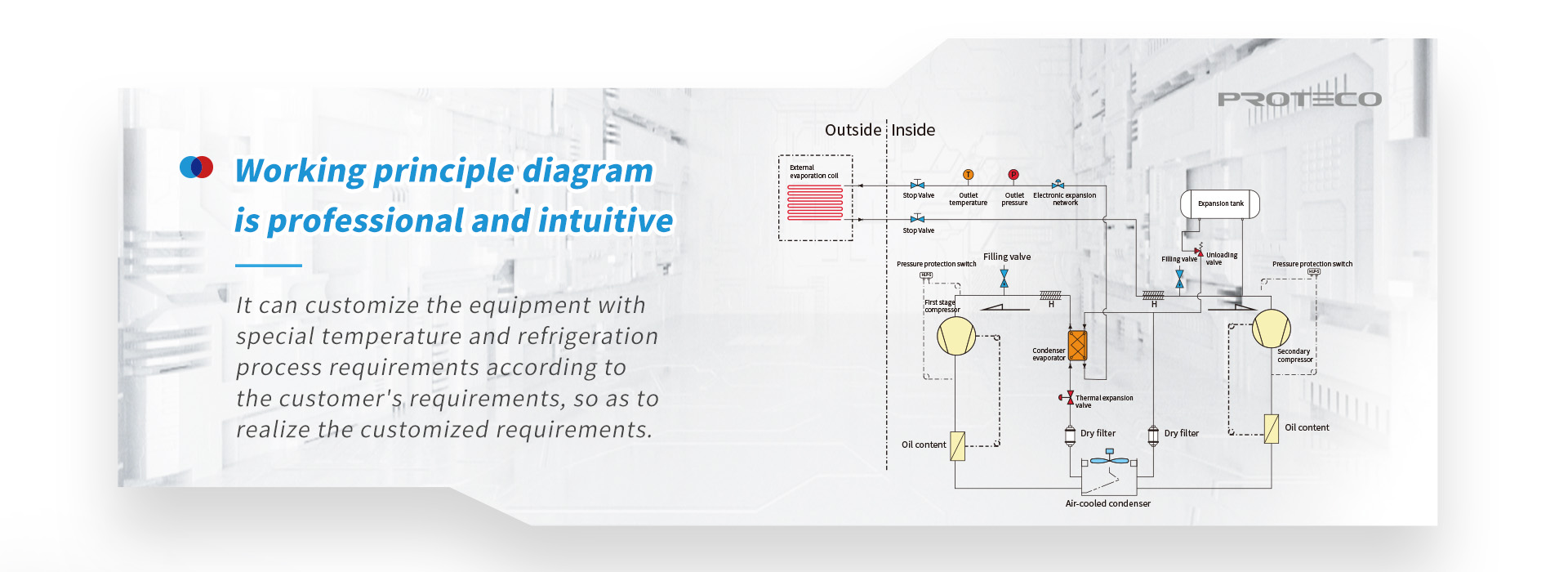

• Double compressor cascade water cooling

• Taikang fully enclosed piston compressor (1.5 horsepower * 2 units)

• External customer cold plate

• First level R404A, second level R23

• 7-inch touch screen with Chinese display, easy to operate and intuitive display, capable of displaying and recording temperature curves and test data

• -80~0℃

• Internally equipped with a cooling module, the maximum allowable cold plate temperature is 200 ℃, and the compressor can be directly turned on for cooling.

• ±0.5℃

• The surface temperature of the customer's cold plate (temperature feedback signal required) can also be controlled by controlling the evaporation temperature.

• 0.01℃

• 0.1kpa

• MODBUS RTU protocol RS 485 interface

• External temperature sensor port and USB data interface

• During the execution of the experiment, real-time graphical curves can be displayed to display the content; Set the actual temperature value, execute the program cycle, and have the function of skipping files and maintaining during program execution.

• water-cooling

• Water temperature: -5~30 ℃, water pressure: 2~4.5bar, flow rate: 1m 3/h

• Φ10， Screw connection (SAE)

• 48 dB(A)

• 5 ... 40?°C

• Having self diagnostic function; Multiple alarm protection functions: leakage protection, compressor overheating, refrigeration system pressure too high, refrigeration system pressure too low, sensor failure, etc

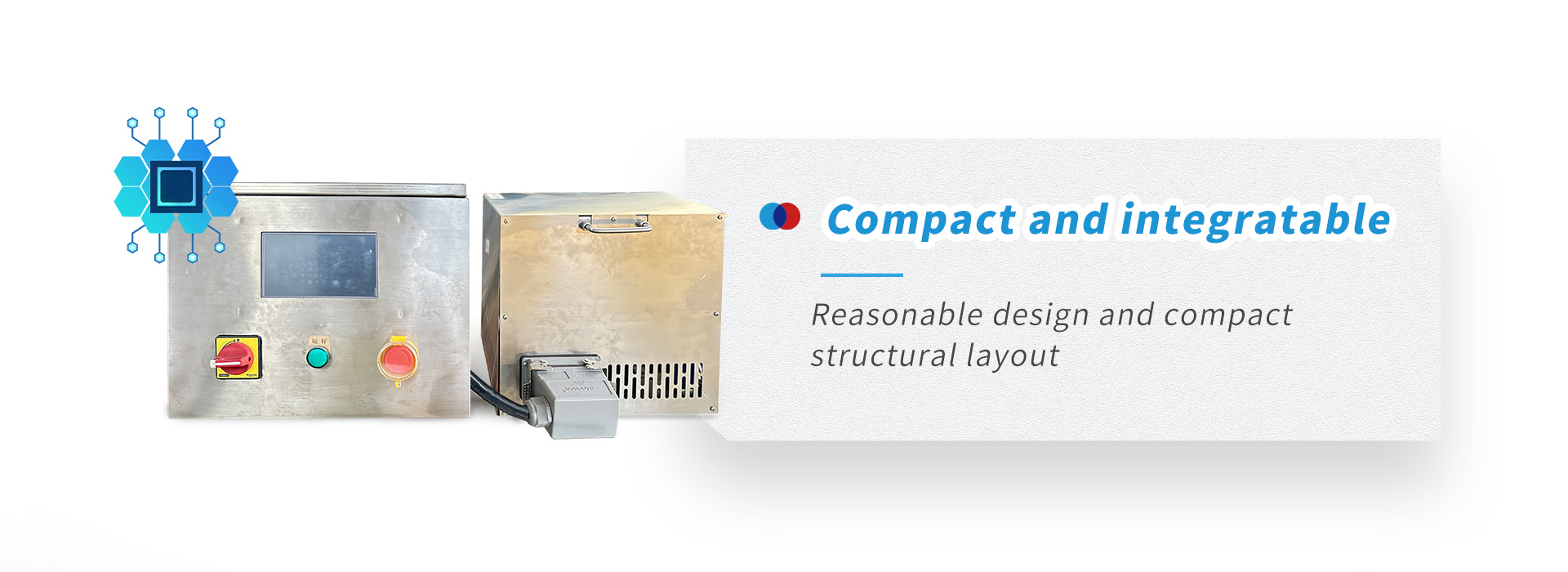

• External electrical control cabinet, touch screen installed on the electrical control cabinet
