High precision high and low temperature integrated machine

In the product development and production processes of the chemical and pharmaceutical industries, temperature control is crucial for safe and high-quality reaction products. Putec's PTHC series is suitable for process industry and process engineering, and is applied to dynamic constant temperature control of cold and heat sources such as jacket reactors, microchannel reactors, reaction devices, combined chemistry, as well as low-temperature distillation, distillation, extraction and other equipment in the pharmaceutical industry.

Temperature control accuracy: ± 0.5 ℃
Temperature control object: material temperature or outlet temperature
Heating and cooling power: 2.5kw 50kw

Consult immediately

OUR
ADVANTAGE

products

PROTECO

See the parameters clearly

Name

Refrigeration and heating methods
temperature range
Flow control range
Pressure control range
Main applications
major function
Temperature control mode
Control system
compressor
Expansion valve
Solenoid valve
evaporator
communication protocol
External input
Distribution power
Cooling form
Shell material
Optional connecting pipeline
Equipment advantages
Equipment advantages
Expansion and upgrading
Expansion and upgrading

Parameter

Refrigeration: steam compression refrigeration, heating: electric heating
-25 ° C~300 ° C (customizable according to requirements) (unloaded)
2L/min~150L/min
0~6bar
Reaction kettle series
Equipped with pressure, temperature, and flow sensors, it can achieve functions such as temperature control, pressure control, and flow control.
Control equipment outlet temperature
7-inch color touch screen, temperature curve display and recording

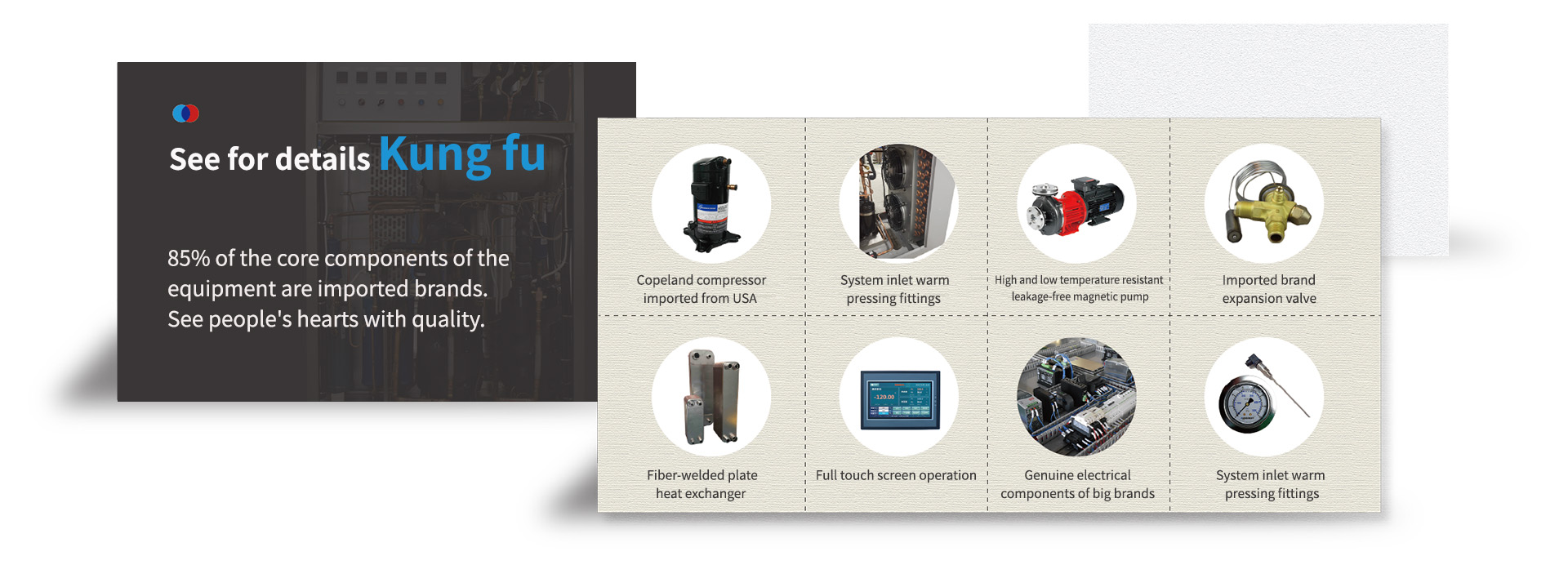

Taikang fully enclosed piston compressor, Emerson Valley wheel scroll compressor from the United States
Danfoss/Emerson Thermal Expansion Valve
Castor/Emerson/Danfoss solenoid valve
Danfoss/Gaoli/Baode Plate Heat Exchanger
MODBUS RTU protocol RS 485 interface
External temperature sensor port, USB data interface
4.5kW ~80kW
Air cooled or water-cooled (suffix "W" for water-cooled models)
Electrostatic spray galvanized sheet/stainless steel 304
Metal insulation pipe or fluorine rubber pipe or silicon rubber pipe
1. Fully enclosed system: does not produce oil mist at high temperatures and does not absorb air moisture at low temperatures. The system will not increase pressure due to high temperatures during operation, and automatically replenishes thermal conductivity medium at low temperatures.
2. Safety protection function: With self diagnostic function; Multiple alarm protection: protection functions for circulating pump failure, compressor overheating, high pressure, etc
1. One to many: A single device can output multiple outputs with multiple loads, each path can independently control temperature, flow, and pressure
2. Customized explosion-proof: can be upgraded to positive pressure explosion-proof or explosion-proof explosion-proof

Product recommendations

Semiconductor thermoelectric cooler, also known as semiconductor chiller, semiconductor temperature control console, precision semiconductor cooler, is composed of semiconductor refrigeration system, circulating water cooling system, temperature control system, and measuring fixture platform. Widely used in semiconductor industry etching devices, CMP laboratory precision devices, high-precision testing instruments, etc

Semiconductor thermoelectric cooler

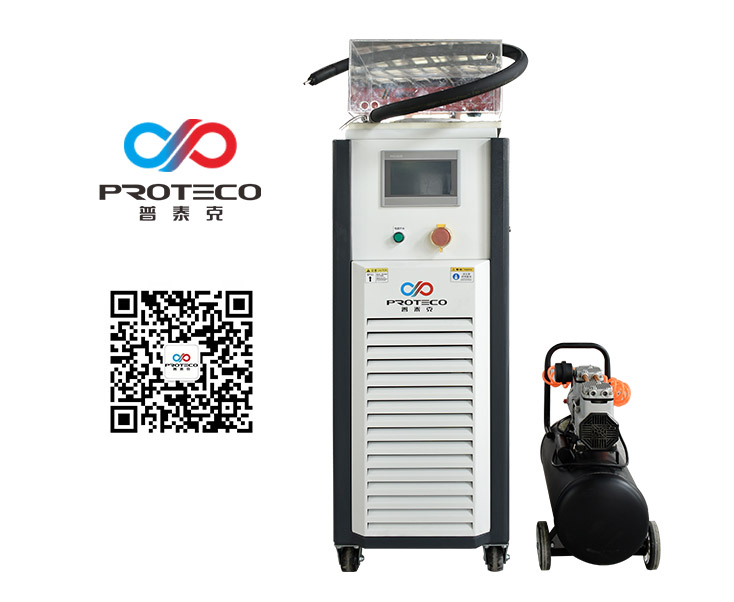

In terms of reliability testing for automotive grade chips, Shanghai Putaike High and Low Temperature Testing Machine has unique advantages that are different from traditional high and low temperature impact testing chambers: fast temperature change rate, fast temperature rise/fall of 18 ℃ per second, real-time monitoring of the actual temperature of the tested component, and the temperature of the impact airflow can be adjusted at any time. It can perform high and low temperature impact on a single IC among many components on the PCB circuit board separately, without affecting other peripheral components

High temperature testing of automotive chips

The Putek PTLD series low-temperature refrigeration unit includes a compressor, pump, expansion chamber, evaporator, and condenser module, which can use single compressor and self cascade refrigeration technology, with strong refrigeration capacity; Environmentally friendly mixed refrigerant, energy-saving and environmentally friendly; Large caliber glass level gauge, easy to observe; Adopting a fully enclosed structural design to avoid low-temperature water absorption by the cooling medium; Importing refrigeration accessories to ensure reliable operation of equipment is an environmentally friendly and economical refrigeration solution.

Low temperature chiller

It mainly consists of heating circulation system, cooling system, control system, box, etc. The heating cycle system consists of a circulation pump, an electric heater, an expansion vessel, an exhaust valve, a one-way valve, a thermal resistor, and a circulation pipeline. The cooling system consists of oil-water heat exchangers, oil-oil heat exchangers (some equipment), cooling water solenoid valves, high-temperature solenoid valves, etc. The control system adopts PID control technology, high-definition touch screen display, and is equipped with multiple protection functions to ensure the safe operation of the equipment. By heating and cooling the unit itself, the heat carrying fluid is transported to the outside world to meet the requirements of the process conditions.

Wafer level probe stage temperature control equipment
